Description
Specifications
Parameters

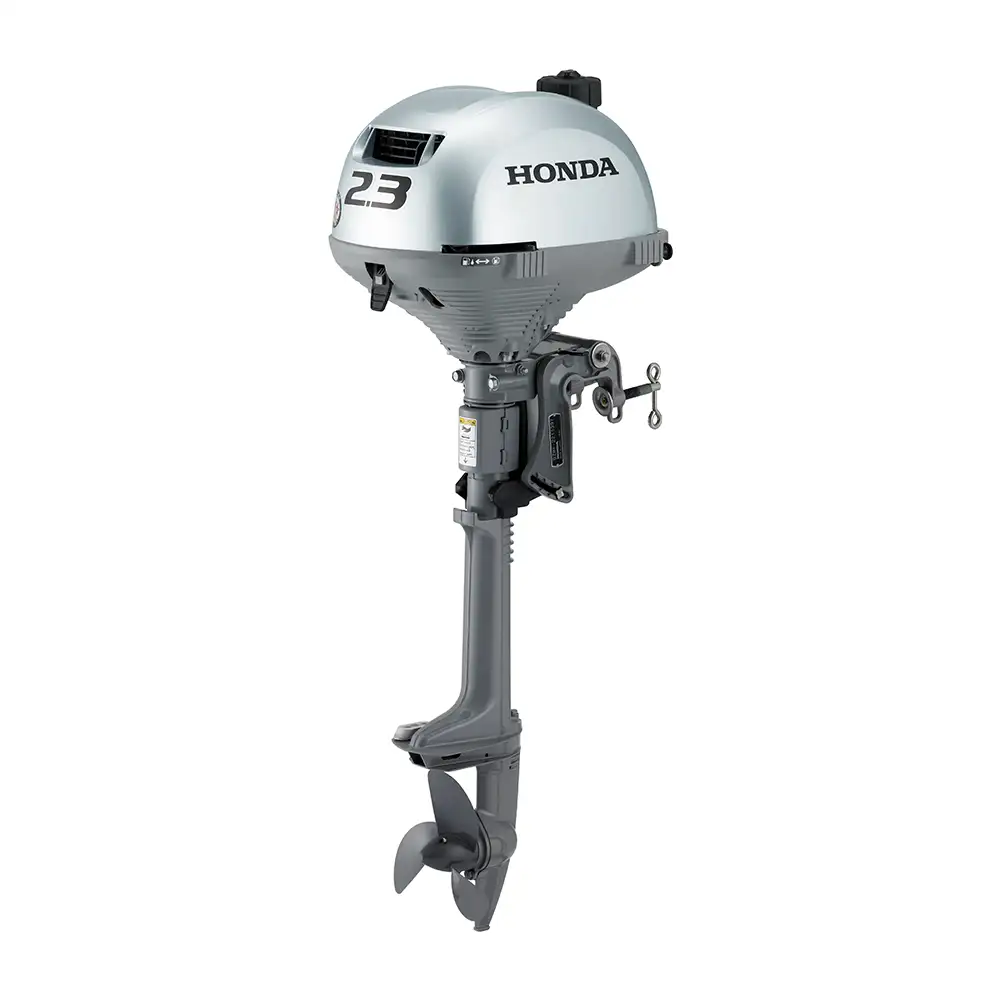

| Model | BF2.3 |
| Type | 4-Stroke OHV 1-Cylinder/2 Valves |
| Displacement | “57.2 cc (3.49 cubic in.)” |
| Bore & Stroke | “45 x 36 mm (1.8 x 1.4 in.)” |
| Full Throttle rpm Range | 5,000-6,000 rpm |
| Rated Power | 2.3 HP @ 5500 rpm |
| Cooling System | Forced Air |
| Fuel Delivery | 1 Carburetor |
| Ignition System | “Transistorized Pointless” |
| Starting System | Recoil |
| Octane | 86 |
| Gear Ratio | 2.42:1 |
| Alternator (Electrical start) | – |
| Power Tilt | NA |
| Power Trim & Tilt | NA |
| Oil Pressure Alert | – |
| Temperature Alert | – |
| Rev-Limiter | – |
| Speedometer Pickup | – |
| Overall Width | 285 mm/11.2 in. |
| Transom Height | (S-type)* 381 mm/15 in. (L-type)* 508 mm/20 in. |
| Dry Weight | (L-type)* 13 kg/29.5 lbs. (X-type)* 14 kg/31 lbs. |
